somewhat productive day.

I have everything between me and gokart in a checklist now, I made it though a small portion of that list today.

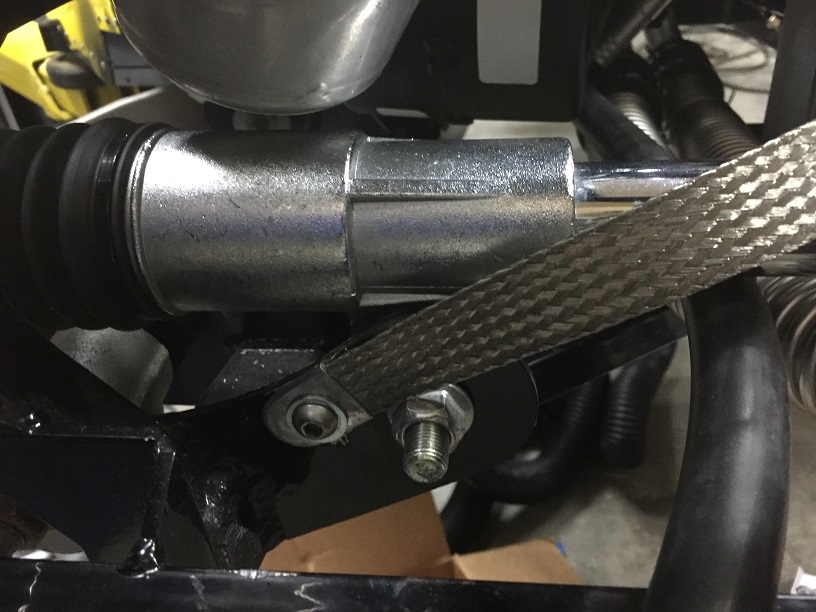

I had to remove the rad to get the drill to mount the grounding strap. (I should have mounted this earlier, whoops)
Click image for larger version.

Name:	IMG_2599.JPG
Views:	27
Size:	160.7 KB
ID:	50915

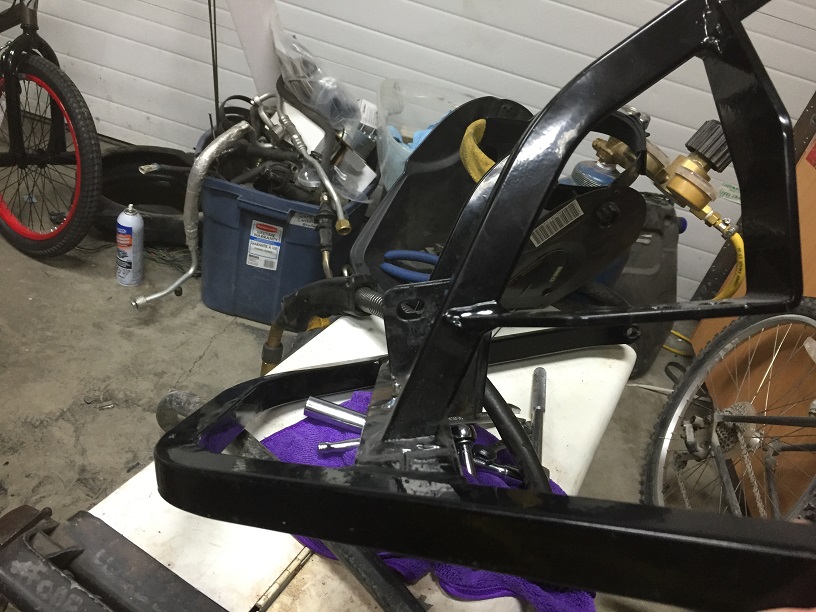

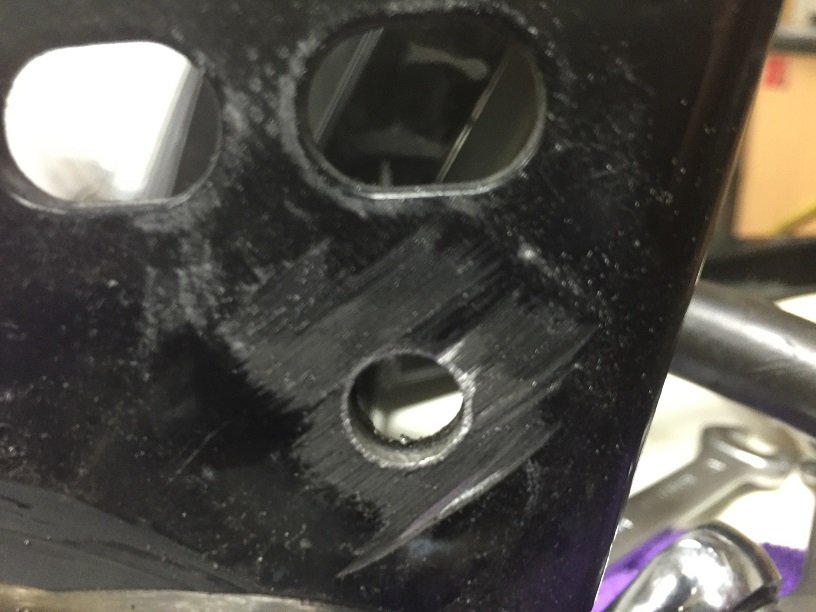

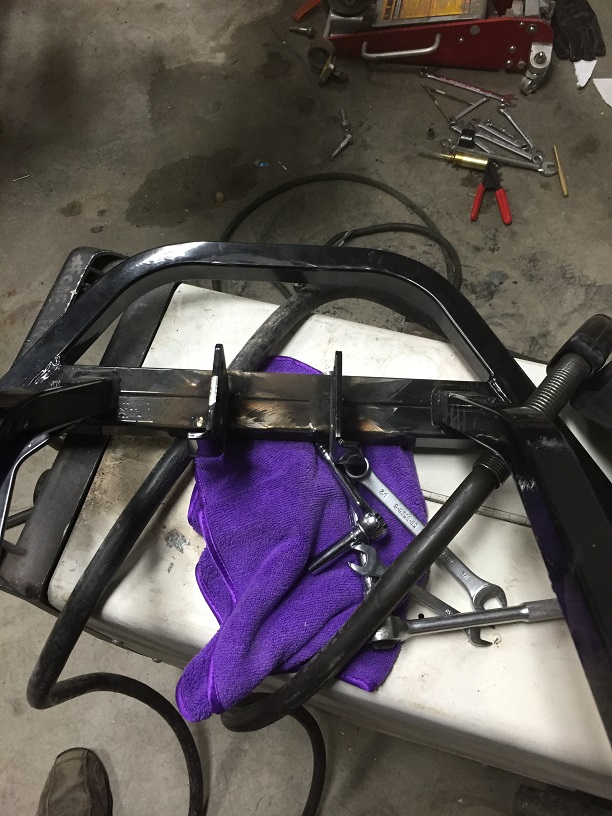

I mounted up the rear trans support cut the old brackets to fit the new transmission and tack welded them in place. This is where i ran into a problem that i am still scratching my head on how to fix. The bolts that need to go though the bracket and trans are now blocked by the square tube that runs down, I think my only option is to cut the square tube, weld in a smaller tube that fits inside and then drill a bolt hole though. This would allow the metal thats in the way to be removed, bolt put in, then reattached.
Click image for larger version.

Name:	IMG_2602.JPG
Views:	23
Size:	186.0 KB
ID:	50916Click image for larger version.

Name:	IMG_2603.JPG
Views:	19
Size:	182.0 KB
ID:	50917Click image for larger version.

Name:	IMG_2605.JPG
Views:	23
Size:	131.1 KB
ID:	50918

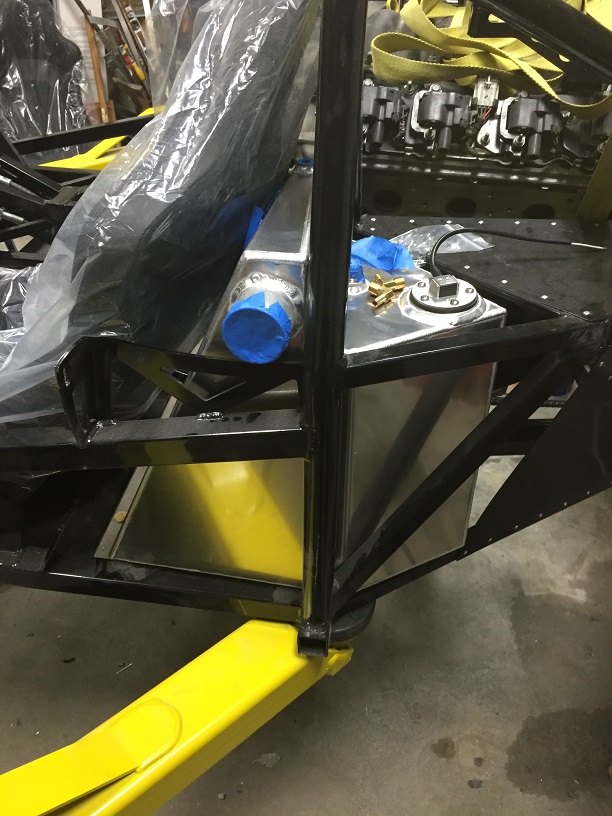

Gas tanks look great. I have been reading about how to mount these... i'm not a big fan of the 2x4 method, wood seems wrong somehow.
Click image for larger version.

Name:	IMG_2607.JPG
Views:	27
Size:	174.5 KB
ID:	50919

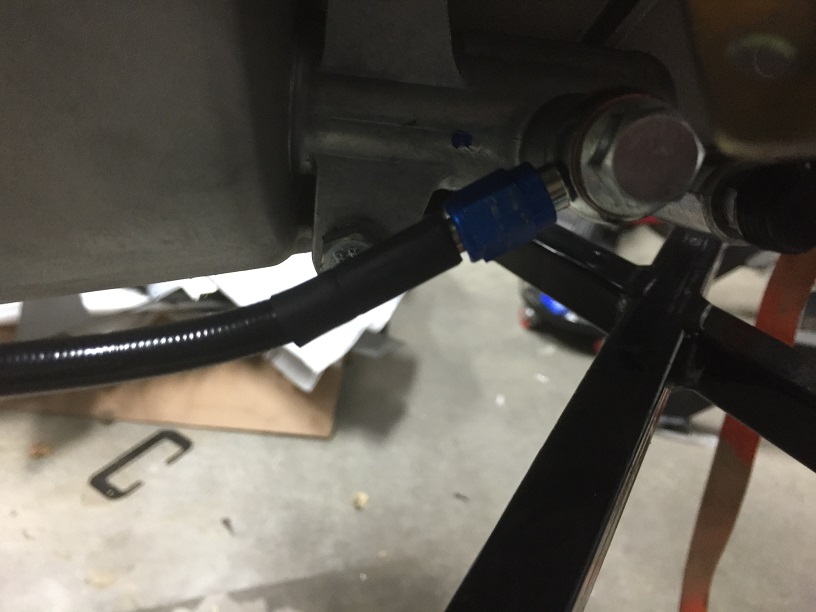

this is the clutch banjo and flexible line that i ended up with. Its all bled now.
Click image for larger version.

Name:	IMG_2608.JPG
Views:	28
Size:	105.8 KB
ID:	50920

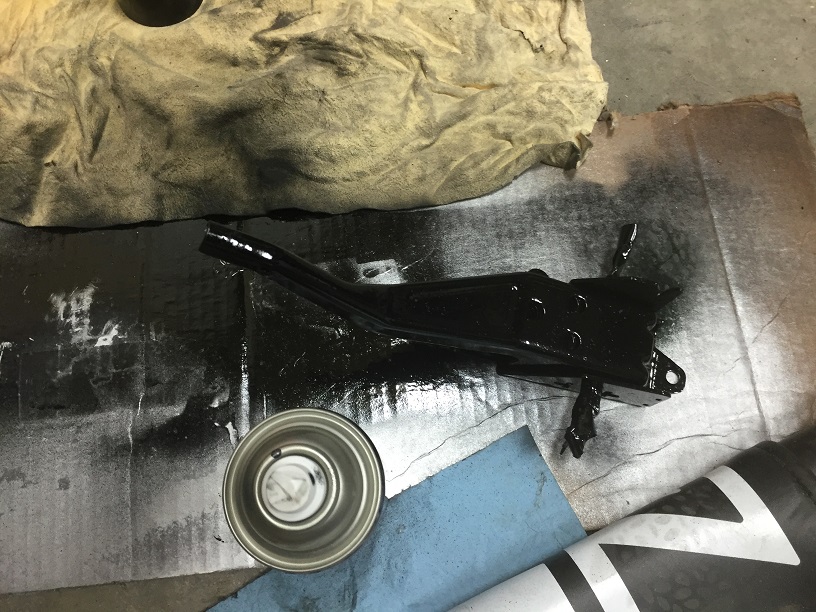

I took apart the donor gas peddle, painted it black, mocked it up, drilled the holes, put in the rivnuts, now just waiting for the paint to dry before mounting one last time.
Click image for larger version.

Name:	IMG_2611.JPG
Views:	26
Size:	218.3 KB
ID:	50921
